Connection Descriptions:
The Main Power cord is supplied with the Modal Amplified Kit. Connect it to the front panel and then connect it to a 100-240V 50-60Hz AC Power Supply
The Type A USB Connector will be connected with the Type A to Type A USB cable included in the Modal Amplified Kit. One end is connected to the USB Port and the other end is connected to one of the Type A USB Ports on the Acquisition Device.
The Type A USB port on the Type A to micro USB Type B Super Speed cable supplied with the Iris M Camera is connected to a second USB Port on the Acquisition Device.
The customer supplied Reference Accelerometer BNC cable is connected to the "Reference Accel" connector.
The supplied BNC for Camera Sync is connected from the Camera Sync port to the Sync cable on the back of the Iris M Camera.

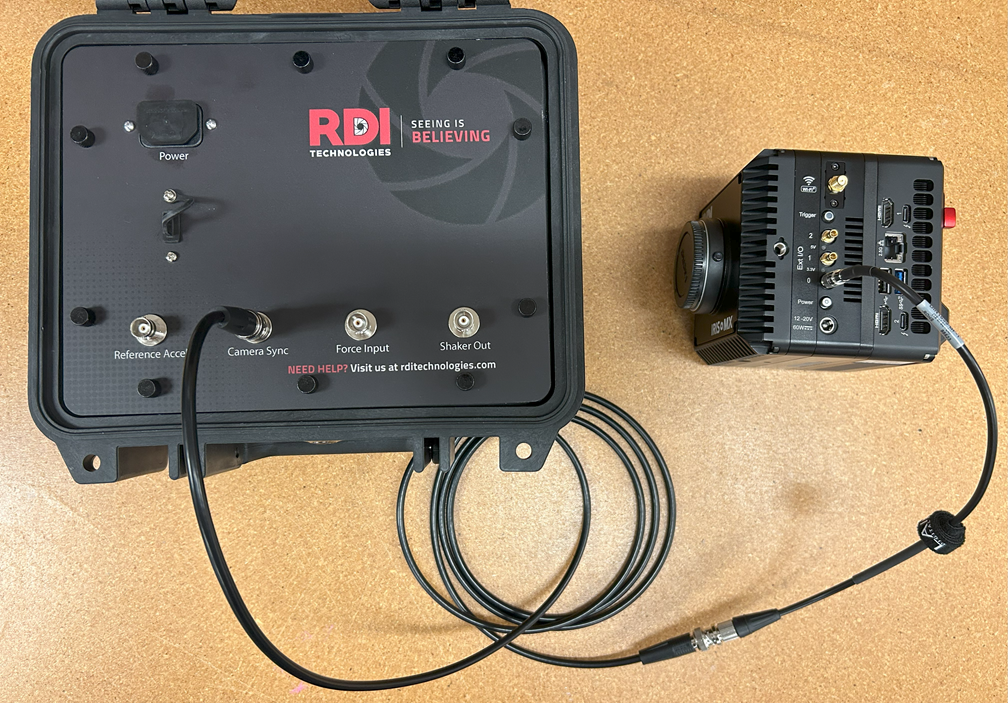

For use with Iris M Camera:
Female BNC "Camera Sync" connector to Male BNC on cable. Male BNC on Cable to Female BNC on Sync Cable. Sync Cable to Camera.

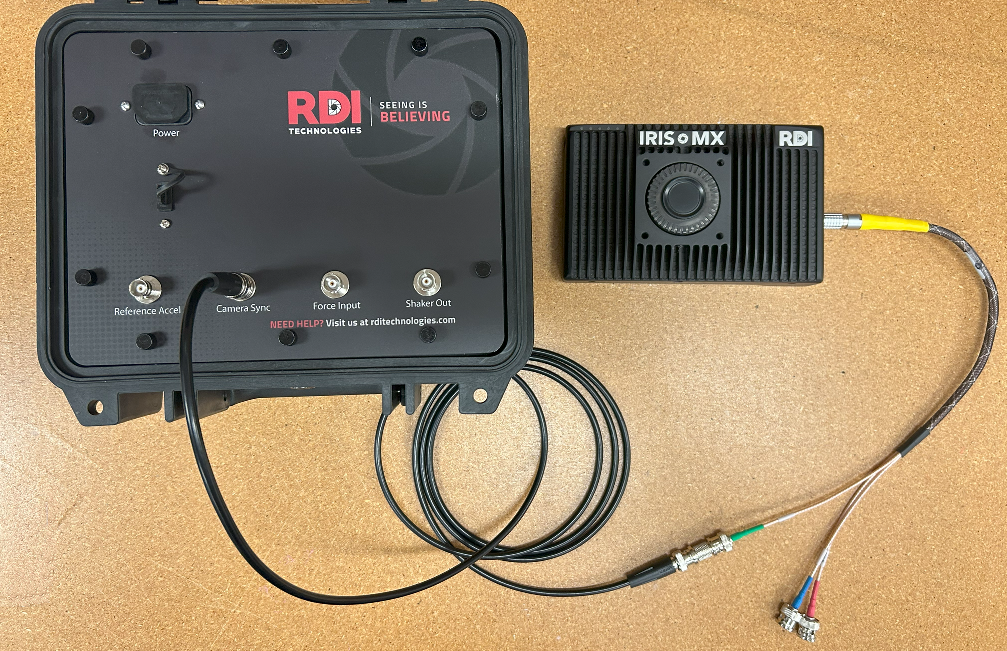

For use with Iris MX Camera:
Female BNC "Camera Sync" connector to Male BNC on cable. Male BNC on Cable to Female BNC on BNC gender changer. Female BNC on gender changer to Green Male "Sync In" connector of Sync Cable. Sync Cable to LEMO connector on Camera.
The Modal Amplified Kit can be purchased with a Modal Hammer or the Modal Hammer can be supplied by the customer. Several different hammers are compatible with the Modal Amplified Kit (What kind of Modal Hammer can I purchase to work with Modal Amplified™?).
There is an optional DAQ Shaker Card available for purchase with the Modal Amplified Kit. The Shaker Out BNC will connect from the Shaker Out connector to the Shaker itself.
